ALARM CABLE

Short Description:

Cable Introduction:

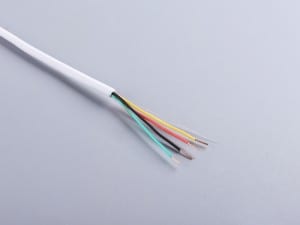

Burglar alarm cable is specifically designed for intruder alarm systems but use in other low voltage applications, and is normal available  in 4, 6, 8 ,12 and 20 cores, in white outer sheaths, with rip-cord.

Voltage Rating: 300V/300V

Temperature Rating: -10°C to +70°C

Color: White

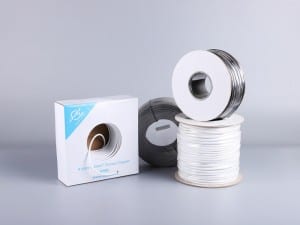

Package: 100 Mtrs Spool or 1000FT/box


Product Detail

Product Tags

USA Market Standard

(Unshield Alarm Cable)

Part NO Specification Part NO Specification
H-UAU224 Unshield Alarm Cable 24AWG/2C H-UAU222 Unshield Alarm Cable 22AWG/2C
H-UAU424 Unshield Alarm Cable 24AWG/4C H-UAU422 Unshield Alarm Cable 22AWG/4C
H-UAU624 Unshield Alarm Cable 24AWG/6C H-UAU622 Unshield Alarm Cable 22AWG/6C
H-UAU824 Unshield Alarm Cable 24AWG/8C H-UAU822 Unshield Alarm Cable 22AWG/8C
H-UAU216 Unshield Alarm Cable 16AWG/2C H-UAU218 Unshield Alarm Cable 18AWG/2C
H-UAU416 Unshield Alarm Cable 16AWG/4C H-UAU418 Unshield Alarm Cable 18AWG/4C

(Shielded Alarm Cable)

Part NO Specification Part NO Specification
H-UAS224 Shield Alarm Cable 24AWG/2C H-UAU222 Shield Alarm Cable 22AWG/2C
H-UAS424 Shield Alarm Cable 24AWG/4C H-UAU422 Shield Alarm Cable 22AWG/4C
H-UAS624 Shield Alarm Cable 24AWG/6C H-UAU622 Shield Alarm Cable 22AWG/6C
H-UAS824 Shield Alarm Cable 24AWG/8C H-UAU822 Shield Alarm Cable 22AWG/8C
H-UAS216 Shield Alarm Cable 16AWG/2C H-UAU218 Shield Alarm Cable 18AWG/2C
H-UAS416 Shield Alarm Cable 16AWG/4C H-UAU418 Shield Alarm Cable 18AWG/4C

Europe Market Standard

Unshield Alarm Cable

Part NO No. of Cores x Nominal Cross Sectional Area(mm2) No. and Nominal Diameter of Strands(mm) Nominal Overall Diameter
H-EAU202 2 x 0.22 7/0.20 3.0
H-EAU402 4 x 0.22 7/0.20 3.5
H-EAU602 6x 0.22 7/0.20 4.1
H-EAU802 8x 0.22 7/0.20 4.5
H-EAU102 10x 0.22 7/0.20 5.2
H-EAU122 12x 0.22 7/0.20 5.4
H-EAU142 14x 0.22 7/0.20 5.8
H-EAU202 20x 0.22 7/0.20 6.8
H-EAU302 30x 0.22 7/0.20 8.4
H-EAU402 40x 0.22 7/0.20 10.0
H-EAU252 2×0.5+2×0.22 16/0.20+7/0.20 4.1
H-EAU254 2×0.5+4×0.22 16/0.20+7/0.20 4.4
H-EAU256 2×0.5+6×0.22 16/0.20+7/0.20 5.2
H-EAU258 2×0.5+8×0.22 16/0.20+7/0.20 5.4
H-EAU2510 2×0.5+10×0.22 16/0.20+7/0.20 5.8
H-EAU2512 2×0.5+12×0.22 16/0.20+7/0.20 5.9
H-EAU2514 2×0.5+14×0.22 16/0.20+7/0.20 6.3
H-EAU2516 2×0.5+16×0.22 16/0.20+7/0.20 6.6
H-EAU2520 2×0.5+20×0.22 24/0.20+7/0.20 7.1
H-EAU272 2×0.75+2×0.22 24/0.20+7/0.20 4.8
H-EAU274 2×0.75+4×0.22 24/0.20+7/0.20 5.0
H-EAU276 2×0.75+6×0.22 24/0.20+7/0.20 5.4
H-EAU278 2×0.75+8×0.22 24/0.20+7/0.20 5.8
H-EAU2710 2×0.75+10×0.22 24/0.20+7/0.20 6.2
H-EAU2712 2×0.75+12×0.22 24/0.20+7/0.20 6.4
H-EAU2714 2×0.75+14×0.22 24/0.20+7/0.20 6.6
H-EAU2720 2×0.75+20×0.22 24/0.20+7/0.20 7.8
